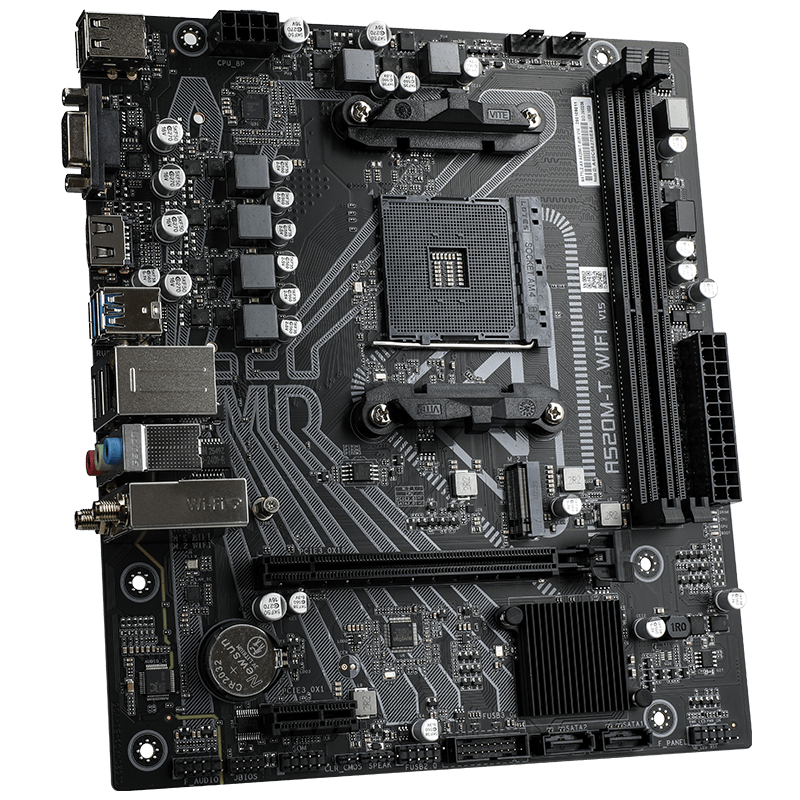

Colorful BATTLE-AX A520M-T WIFI V14 new in 10 months warranty
₨23,500
Provides 1 PCIe 3.0 x4 M.2 SSD slot
Provides 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Gigabit network interface and WIFI 6E wireless network card, Bluetooth 5.3
Provides HDMI+VGA display interface
Six major protection technologies, more stable product operation
| Model | BATTLE-AX A520M-T WIFI V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD A520 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory) – Support DDR4-4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400MHz memory – Support Extreme Memory Profile (XMP) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 2 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices – M.2_1 slot: supports 2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×VGA interface -1×Gigabit network interface -2×Wi-Fi 6E antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin |
| Expansion Slots | 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit Ethernet, MediaTek MT7902-D Wi-Fi 6E wireless network card, Bluetooth 5.3 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 220mm x 195mm |
