This groundbreaking review serves as the proof of reliability & quality for Tracer by AMD House. In this review we are comparing Tracer B450M-D4 Pro against Gigabyte B550M-K V2, Gigabyte A520M-K, MSI Pro B550M-B, MAXSUN B550M Gaming Wifi and ASUS Prime B450M-K.

Table of Contents

Best Budget AM4 Motherboard: Tracer B450M-D4 Pro Destroys Mainstream Giants (ASUS, MSI, Gigabyte) in VRM Thermal Showdown

If you are building a budget gaming PC on AMD’s legendary AM4 platform, your choices are usually dominated by legacy tech giants like ASUS, MSI, and Gigabyte. Most builders blindly trust these mainstream name brands, assuming their budget motherboards are the safest option.

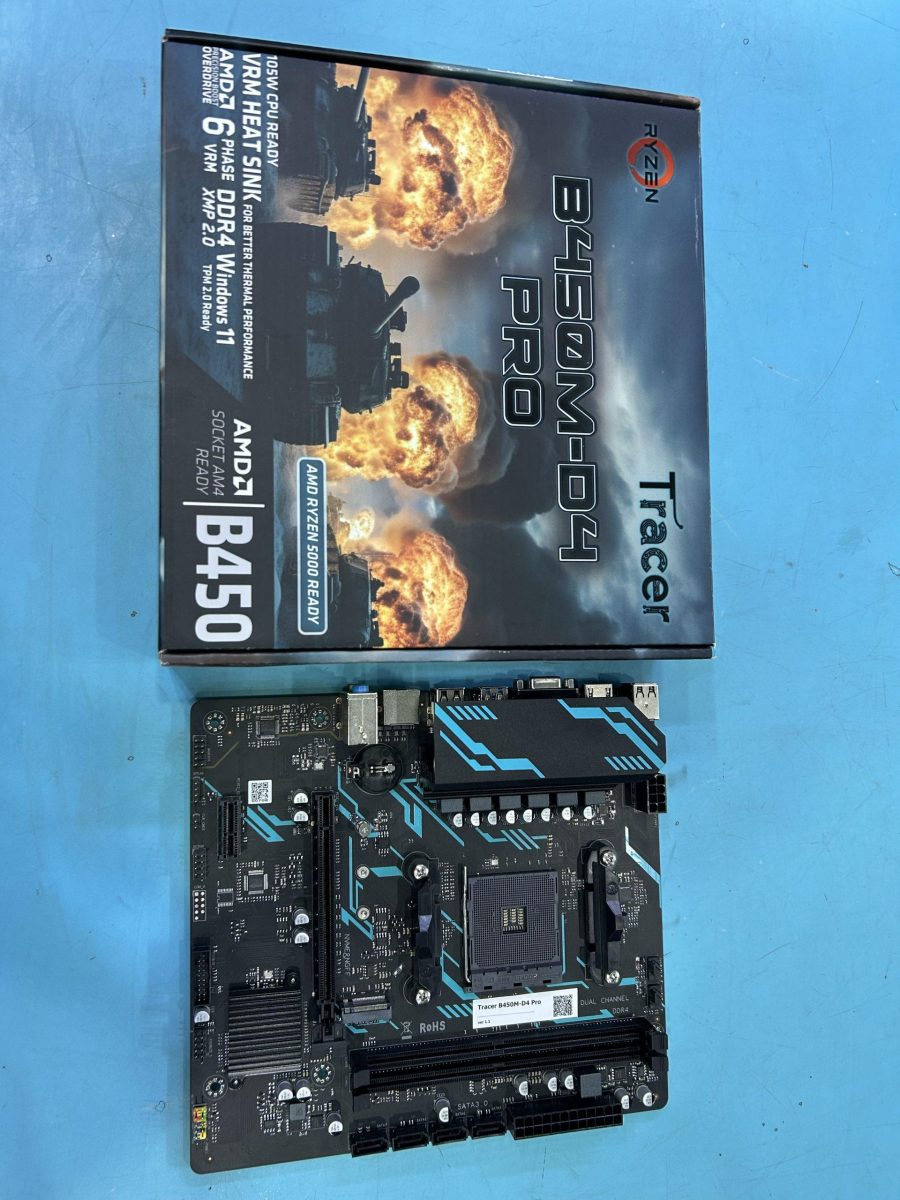

However, an aggressive new contender has disrupted the entry-level PC market: the Tracer B450M-D4 Pro, launched and locally backed by AMD House.

While tier-1 manufacturers have spent years aggressively cutting costs on their entry-level lineups—stripping away crucial components like Voltage Regulator Module (VRM) heatsinks—the Tracer B450M-D4 Pro has entered the ring to challenge them on pure, raw engineering.

In a groundbreaking head-to-head hardware review published by AMD House, this 20,000 PKR motherboard went toe-to-toe with five of the most popular budget motherboards on the market. Using a brutal 10-minute Cinebench R23 multi-core stress test paired with a power-hungry, 105W TDP AMD Ryzen 7 5800X, the results completely expose the corner-cutting of legacy brands.

Here is the complete, data-driven breakdown of how the Tracer B450M-D4 Pro proved itself as the absolute king of budget AM4 motherboards.

The Hardware Battleground: Test Bench Configuration

To guarantee an completely unbiased, real-world comparison, all motherboards were tested under identical, strict environmental conditions:

Processor: AMD Ryzen 7 5800X (A punishing 105W TDP chip capable of pulling over 140W under full load).
Graphics Card: AMD Radeon RX 7800 XT (Used strictly for steady display output).
Memory: 32GB DDR4 RAM running at 3200MHz with XMP Profile Enabled (CL18).
Cooling: Premium 360mm All-in-One (AIO) Liquid Cooler (3x intake fans at the front, 3x exhaust at the top, 1x exhaust at the back).
Case Environment: Fully closed chassis with side glass panels installed to accurately simulate a user’s real-world thermal build environment.
Benchmark Tool: Cinebench R23 Multi-Core (Set to a continuous 10-minute looping cycle to thoroughly heat up and stress the motherboard VRMs).

Deep-Dive Benchmarking Data: Tracer vs. The Market Veterans

The most critical component of any motherboard is its VRM setup, which is responsible for delivering clean, stable power to the CPU. If the VRMs overheat, the motherboard will forcefully throttle the CPU’s power draw, causing your clock speeds and gaming FPS to drop off a cliff.

The real-world testing data reveals a shocking disparity between the Tracer and mainstream tier-1 choices:

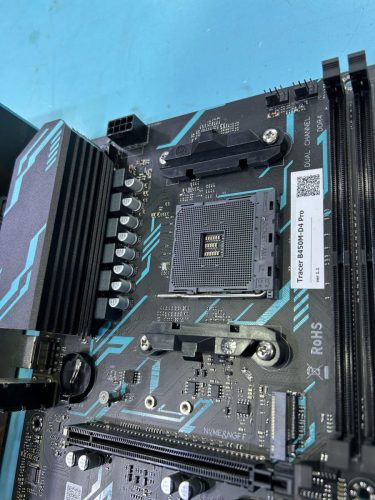

1. Tracer B450M-D4 Pro (AMD House)

Market Price: ~20,000 PKR

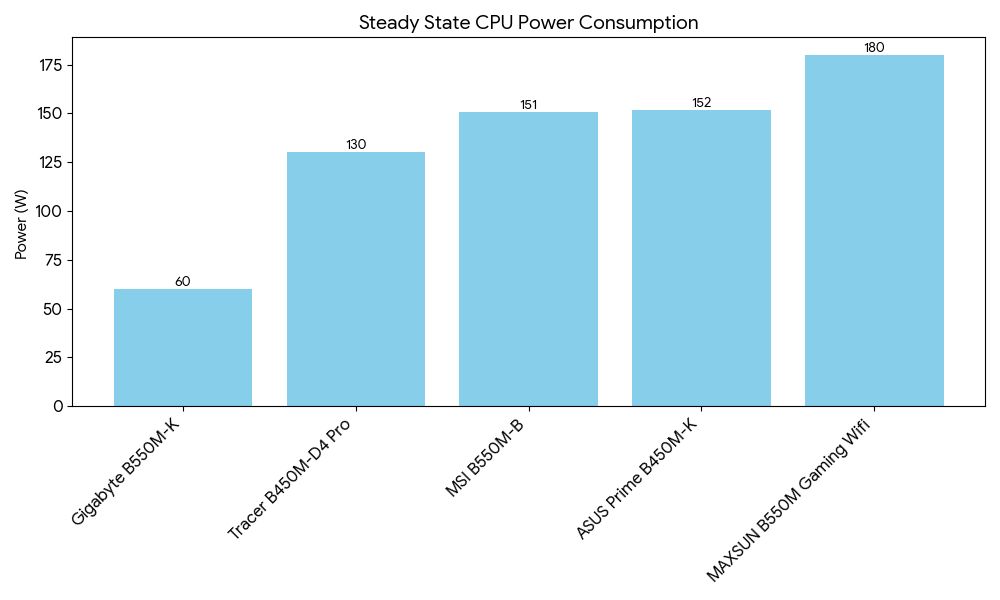

Power Delivery Behavior: Rock-solid stability. It continuously pumped between 128W and 136W directly to the Ryzen 7 5800X without a single moment of instability.
Peak VRM PCB Temperature: ~80°C

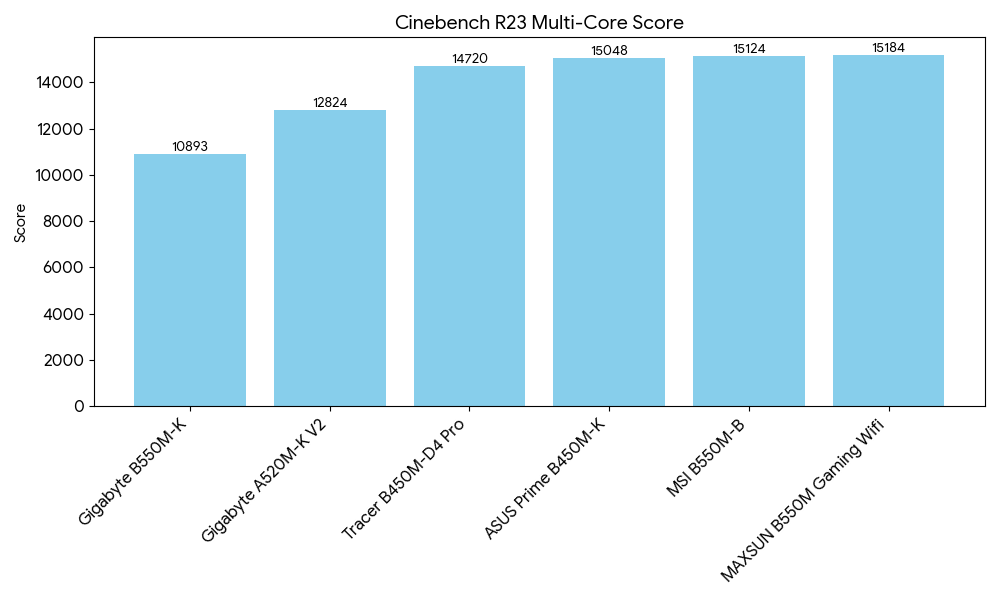

Cinebench R23 Multi-Core Score: 14,730 (Full Performance)

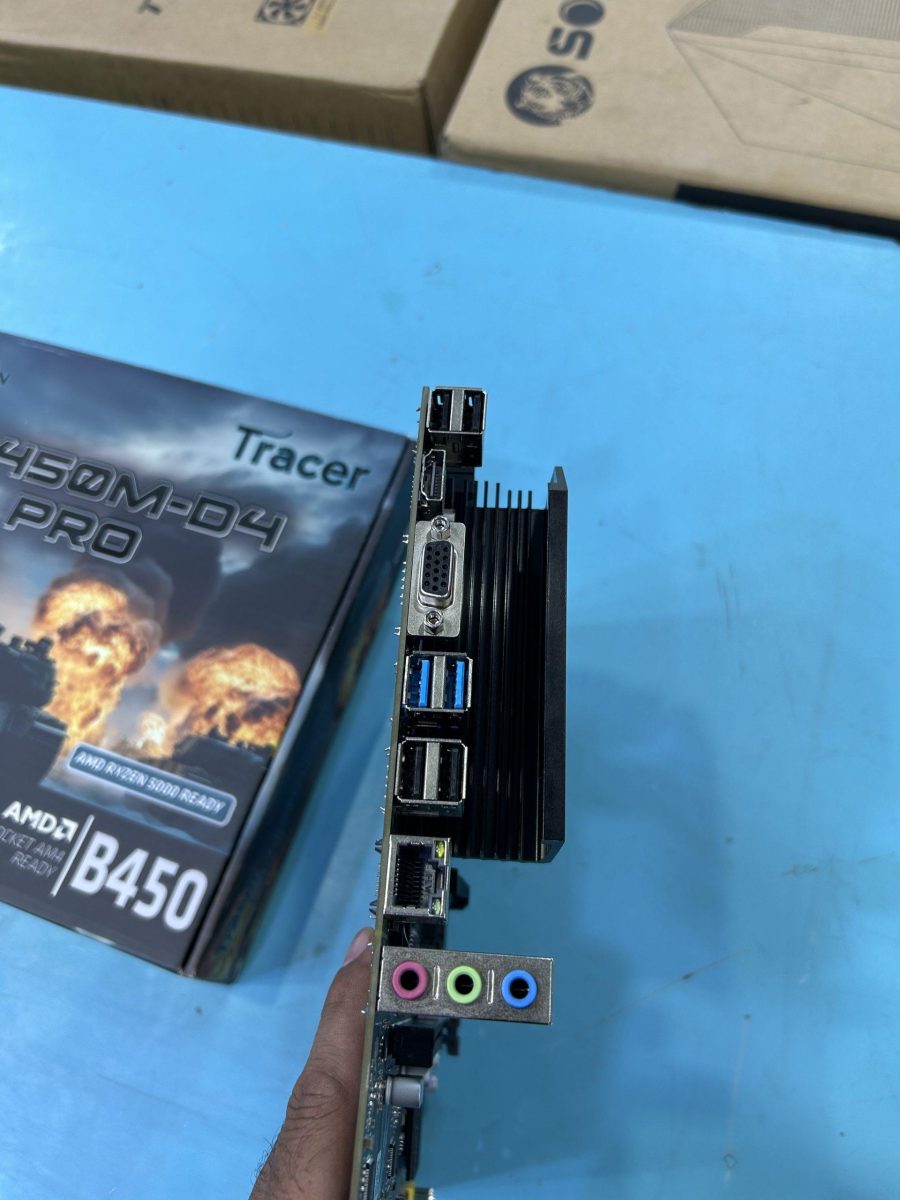

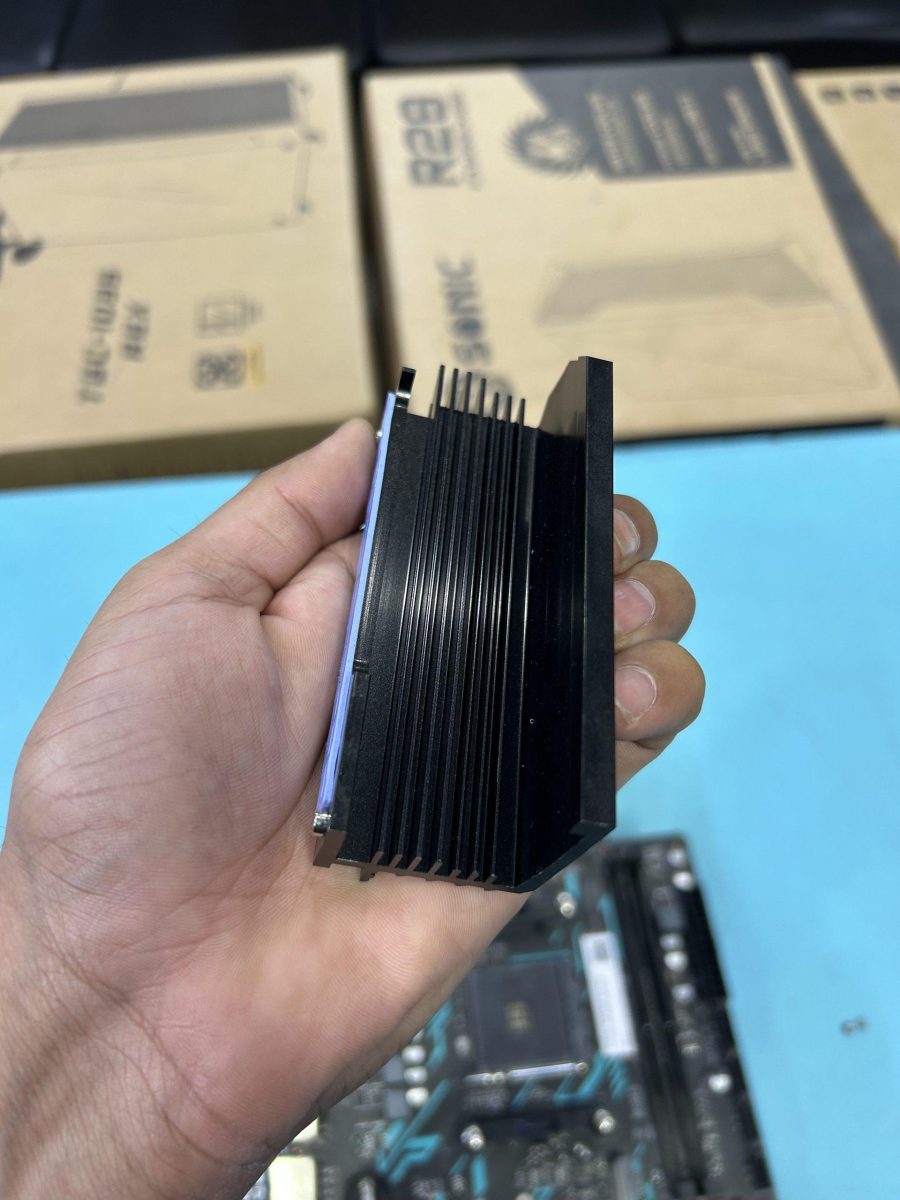

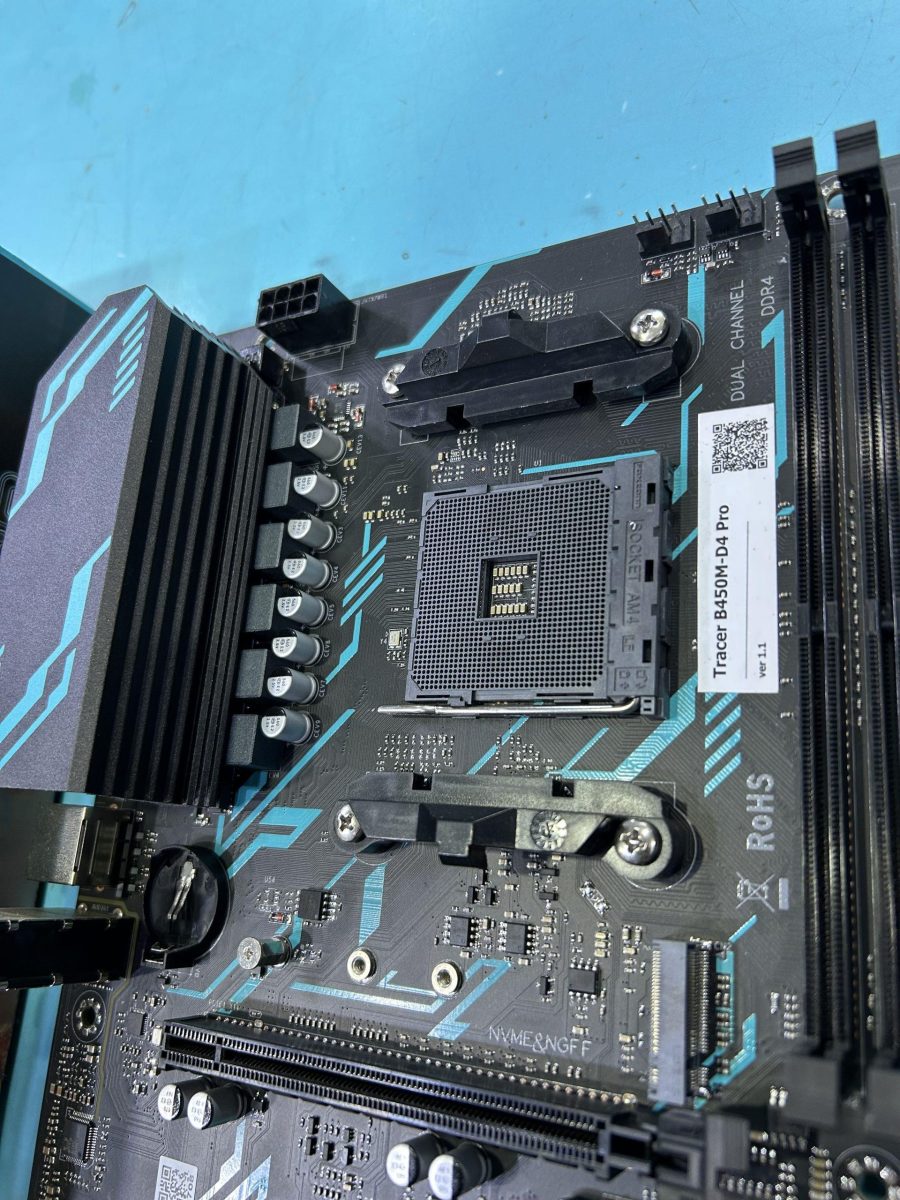

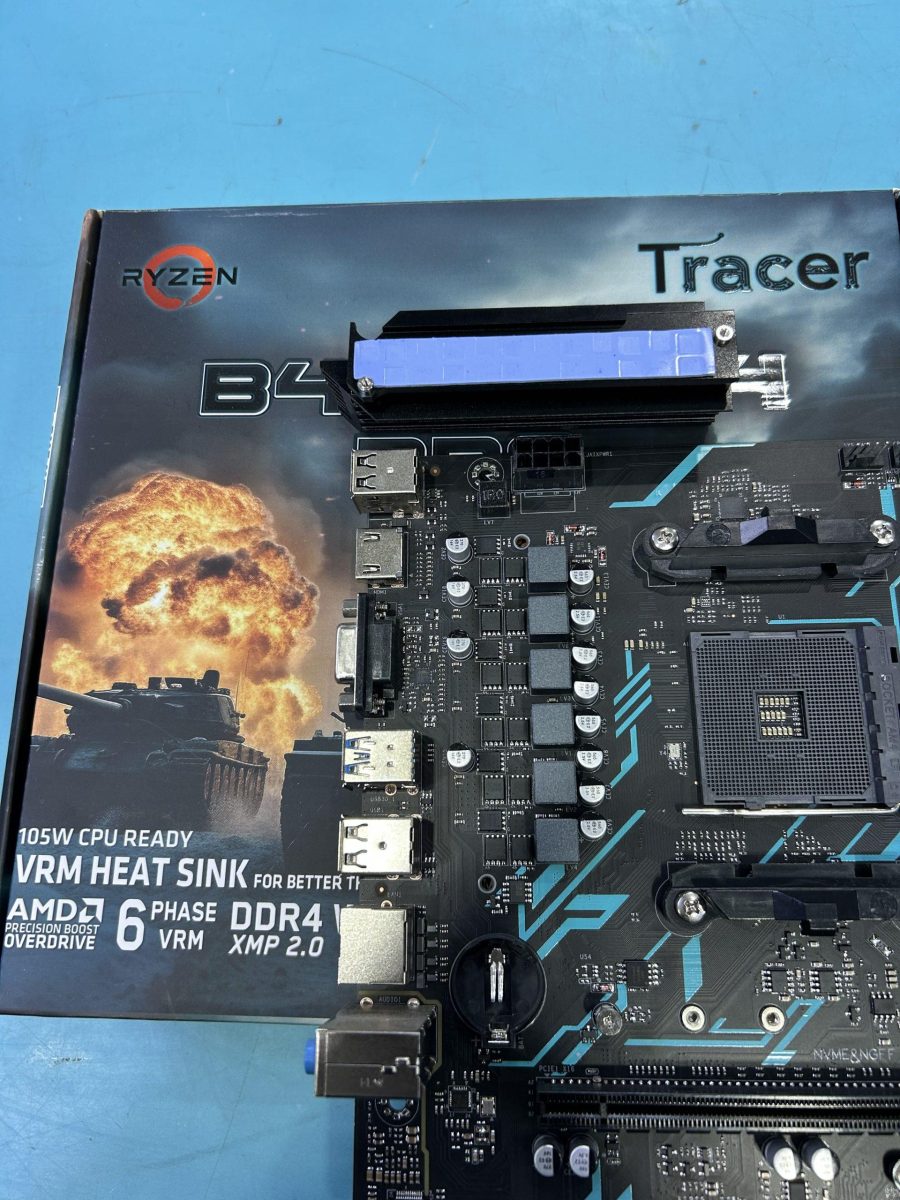

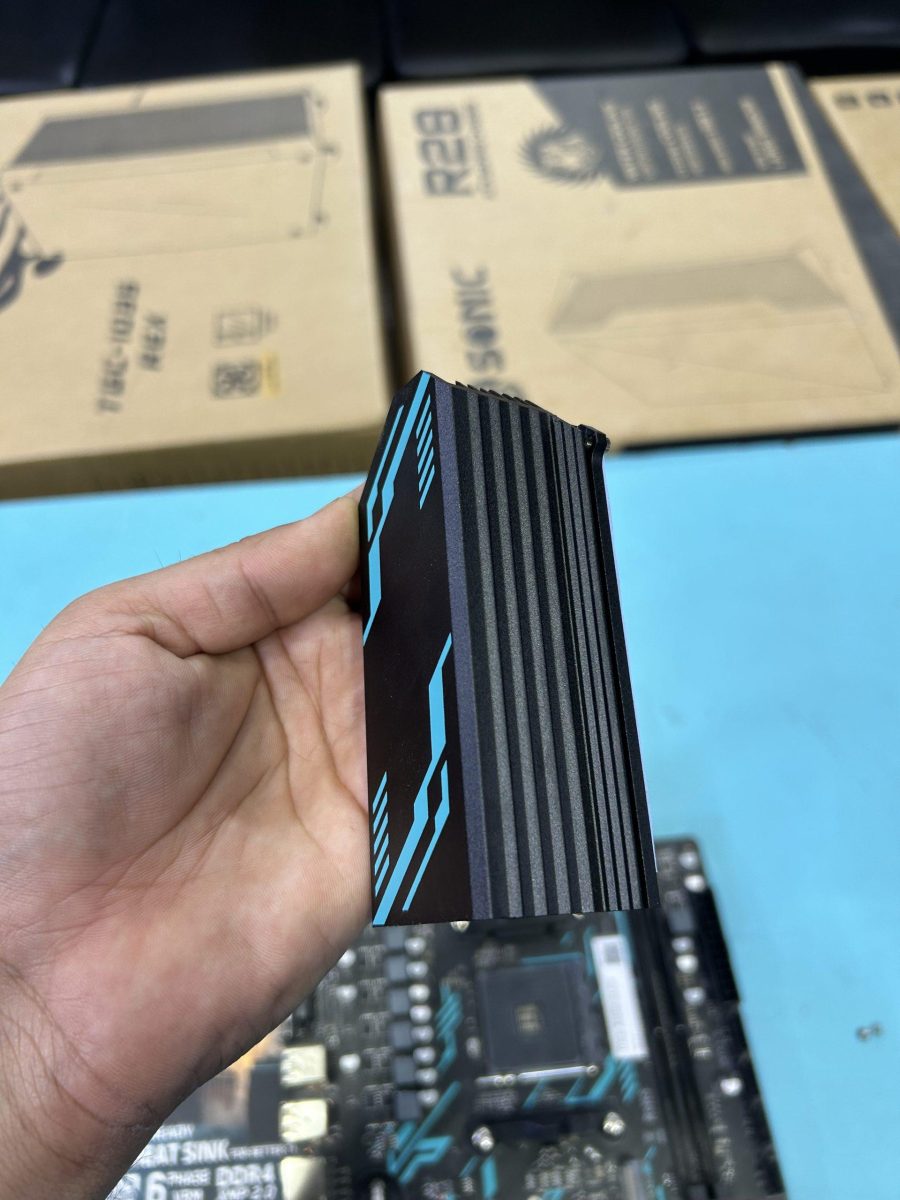

The Verdict: Armed with a dedicated physical aluminum VRM heatsink and an optimized 6-phase power delivery array, the Tracer board handled the 5800X perfectly, staying well within safe operating temperatures and achieving a flawless baseline performance score.

2. Gigabyte A520M-K V2

Market Price: ~19,500 PKR
Power Delivery Behavior: Severe Thermal Throttling. The power delivery repeatedly spiked to 129W and then instantly cratered down to a dismal 33W.
Peak VRM PCB Temperature: ~127°C (Danger Zone)
Cinebench R23 Multi-Core Score: Massively Dropped
The Verdict: This board lacks a VRM heatsink entirely. Within just 5 minutes of stress testing, the VRMs completely overheated to an alarming 127°C, forcing the Ryzen 7 5800X to aggressively throttle down to a crawl of just 1.6GHz. It is utterly unusable for high-power processors.

3. Gigabyte B550M-K

Market Price: ~25,000 PKR
Power Delivery Behavior: Hard Factory Power-Locked at 60W.
Peak VRM PCB Temperature: Cool (due to the strict artificial power cap)
Cinebench R23 Multi-Core Score: Severely Crippled
The Verdict: In a shocking turn of events, Gigabyte artificially locks this B550 board’s microcode at the factory level. It completely refuses to give the CPU more than 60W of power—likely because the underlying VRMs are too weak to support it. Buying this board for a “future upgrade path” is a total trap; it chokes your CPU’s performance right out of the box.

4. MSI Pro B550M-B

Market Price: ~25,000 PKR
Power Delivery Behavior: Stable at ~150W
Peak VRM PCB Temperature: ~94°C
Cinebench R23 Multi-Core Score: 15,124
The Verdict: The MSI board successfully delivered full power to the processor without throttling, netting an excellent performance score. However, it ran noticeably hotter than the Tracer board, pushing close to the mid-90s.

5. Maxsun B550M Gaming Wi-Fi

Market Price: ~25,000 PKR
Power Delivery Behavior: Stable at ~180W
Peak VRM PCB Temperature: ~80°C
Cinebench R23 Multi-Core Score: 15,184
The Verdict: Sporting a premium 4+2 phase VRM design with robust physical cooling blocks, the Maxsun board performed beautifully. However, it sits at a much higher price class and lacks immediate local software infrastructure.

6. ASUS Prime B450M-K

Market Price: ~21,000 PKR
Power Delivery Behavior: Sustained Full Power
Peak VRM PCB Temperature: ~116°C (Borderline Unsafe)
Cinebench R23 Multi-Core Score: 15,048
The Verdict: The ASUS Prime board successfully pushed the Ryzen 7 5800X to its absolute maximum limit, achieving the highest performance score in the lineup. Unfortunately, because it lacks a proper VRM cooling heatsink, the motherboard components reached a blistering 116°C—putting long-term system longevity at serious risk.

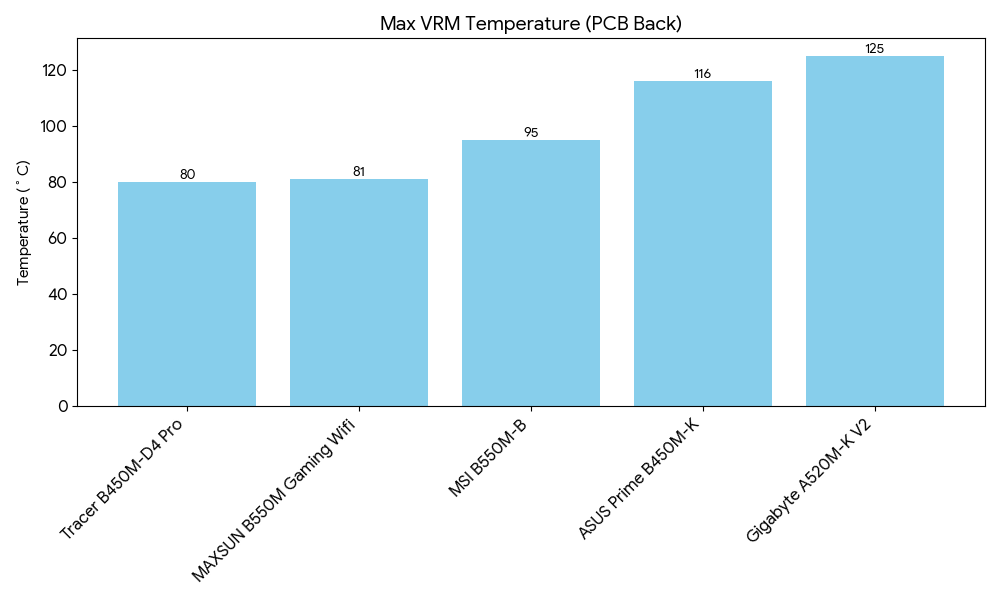

Head-to-Head Thermal & Performance Summary Table

Motherboard Model	Price Tier (PKR)	Heatsink Present?	Max VRM Temp	CPU Power Status	Performance Drop?
Tracer B450M-D4 Pro	~20,000	Yes (Dedicated)	~80°C (Safe)	Sustained 128W+	None (Stable)
Gigabyte A520M K V2	~19,500	No	~127°C (Critical)	Throttled to 33W	Severe (Crashed to 1.6GHz)
Gigabyte B550M K	~25,000	No	Cool (Artificial Cap)	Factory Locked at 60W	Extreme (CPU Crippled)
ASUS Prime B450M-K	~21,000	No	~116°C (Extreme)	Sustained Full Power	None (Dangerous VRM thermals)
MSI Pro B550M-B	~25,000	No	~94°C (Warm)	Sustained 150W	None
Maxsun B550M Gaming	~30,000	Yes (Premium)	~80°C (Safe)	Sustained 180W	None

Crucial Takeaways for Budget PC Builders

1. The Brand Name Marketing Myth Exploded

The most eye-opening discovery in this comparison is that mainstream “brand name” labels do not automatically equal quality. Legacy manufacturers are banking entirely on their legacy reputation to sell severely stripped-down products to budget buyers.

The fact that a 20,000 PKR Tracer board completely out-cooled an ASUS Prime board by 36°C, and exposed a 25,000 PKR Gigabyte B550 board for artificially capping power at 60W, proves that choosing parts based purely on a sticker is a massive mistake.

2. Sourcing, Local Testing, and Quality Control

Unlike generic, untracked Chinese imports flooding the used market, the Tracer line undergoes strict local validation. AMD House manages the sourcing directly from verified Chinese OEMs. Every model is flown in via air sample, subjected to harsh internal load testing, and verified for thermal efficiency before bulk orders are placed for retail.

3. Real-World Field Reliability Rates

Many builders worry about the long-term reliability of non-mainstream brands. However, real-world data speaks for itself. Out of more than 500 to 600 Tracer B450M-D4 Pro units retailed locally over a 7-to-8 month operational span, only two boards were ever returned under RMA.

One suffered physical socket damage during rough shipping transit to Karachi, and only one presented a genuine internal component claim. This incredibly low failure rate easily beats industry-standard return ratios for tier-1 alternatives.

Final Verdict: Is the Tracer B450M-D4 Pro Worth It?

If you are putting together an AMD Ryzen 5 (3600, 5600, 5600G) or mid-range Ryzen 7 (5700X, 5800X) gaming build, the Tracer B450M-D4 Pro is the undisputed value champion.

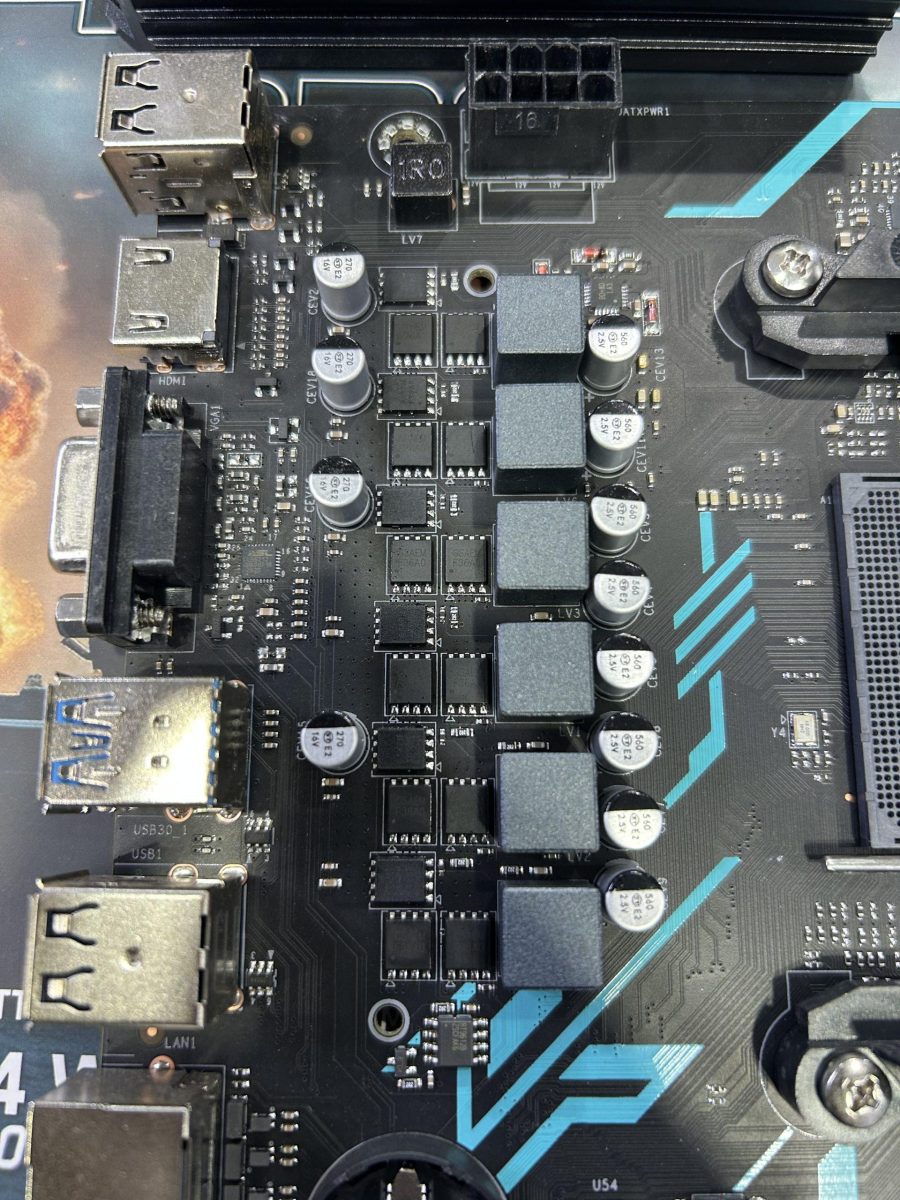

While the “Big Three” legacy brands force you to spend upwards of 26,000+ PKR just to get basic VRM cooling, Tracer delivers B550-tier thermal safety at an entry-level A320 price point. It focuses its entire engineering budget strictly on physics—giving you a thick physical heatsink, robust 6-phase power delivery, stable RAM XMP support, and an active local 10-month warranty repository through AMD House.

Stop paying the “brand tax” for inferior hardware. The Tracer B450M-D4 Pro has successfully proven its mettle against the industry veterans, earning its title as the king of budget AM4 motherboards.
